Product Details
＋
7" Vacuum Suction Cup by Raimondi with replaceable vacuum gauge and stain-free rubber. The Raimondi RV 175: “vacuum” pump suction cup with vacuum gauge designed for handling textured ceramic tiles and slabs. Guarantees perfect grip even on textured tiles. RV 175 is also suitable for lifting any non-porous material such as marble, granite, glass, etc. The vacuum gauge is protected against impacts and can be easily replaced, if necessary. In the event of accidental breakage, a dedicated screw is included into the maintenance kit, which allows the suction cup to be used without the vacuum gauge.

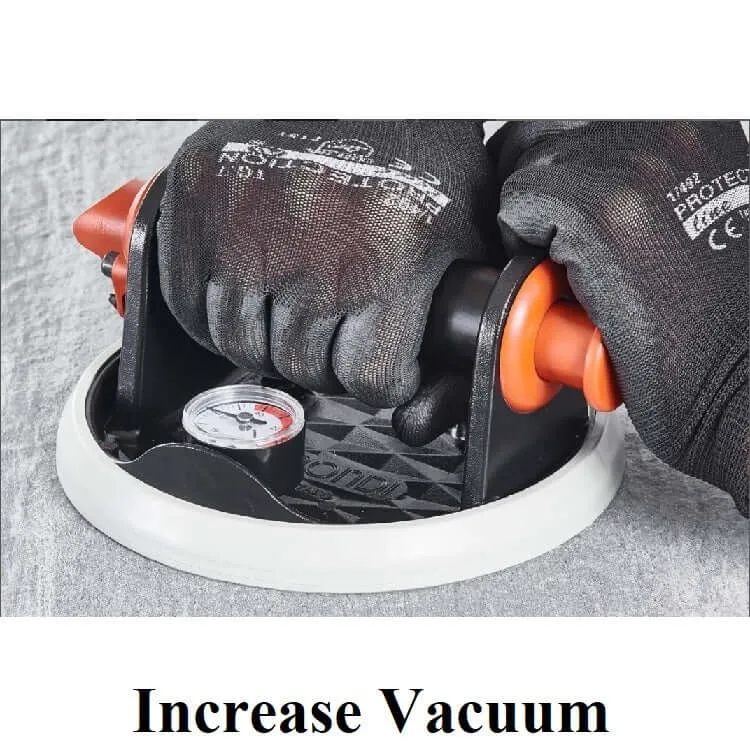

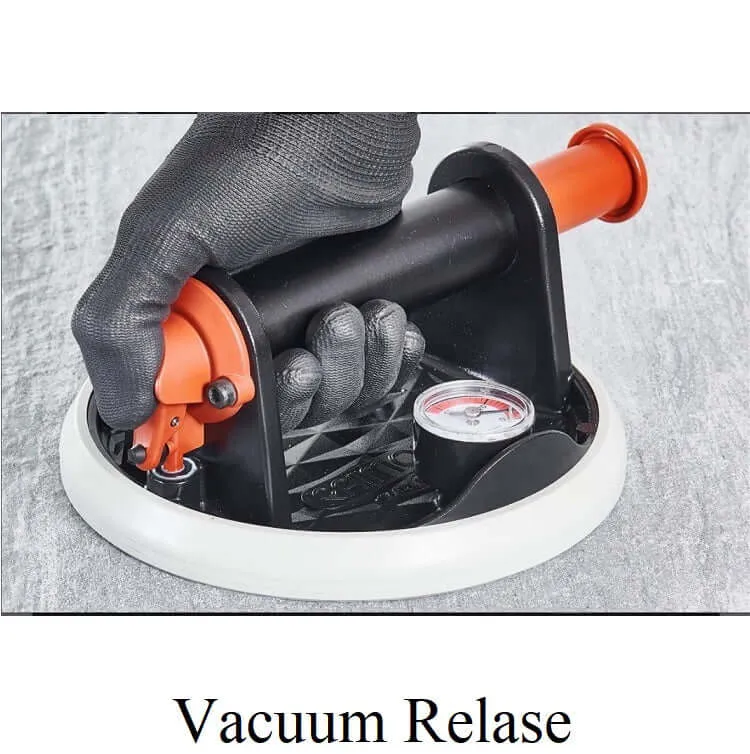

- Handle has manual vacuum pump. Pump up vacuum with hand and release vacuum with thumb
- The vacuum gauge allows to constantly monitoring the gripping status of the suction cup, informing the operator when it is necessary to restore the vacuum level.
- The stain-free rubber cup is easily removable from the die-cast aluminum main body and can therefore be replaced if necessary.

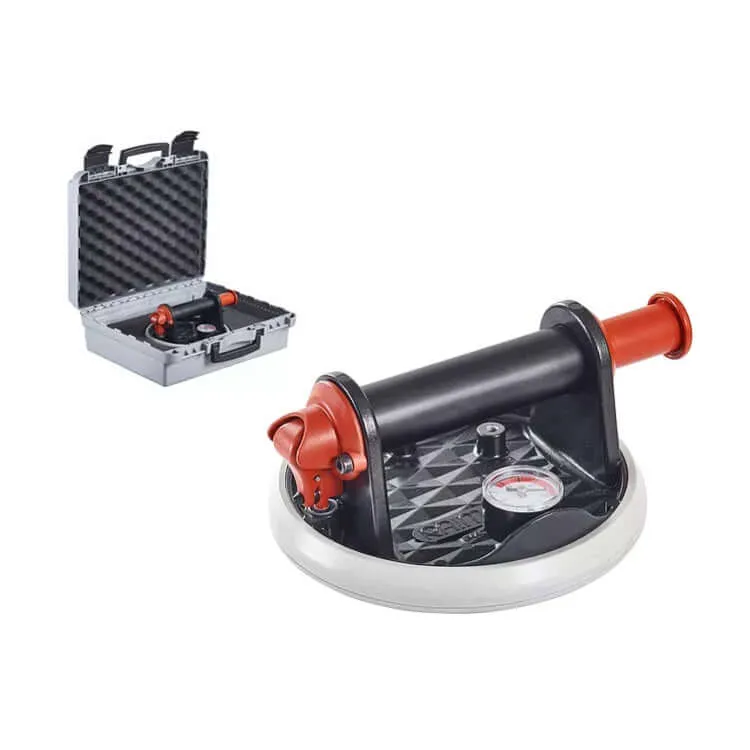

- RV 175 is equipped with a carry case, complete with protection cup and maintenance kit.
- High performance vacuum valve, resistant to corrosion.

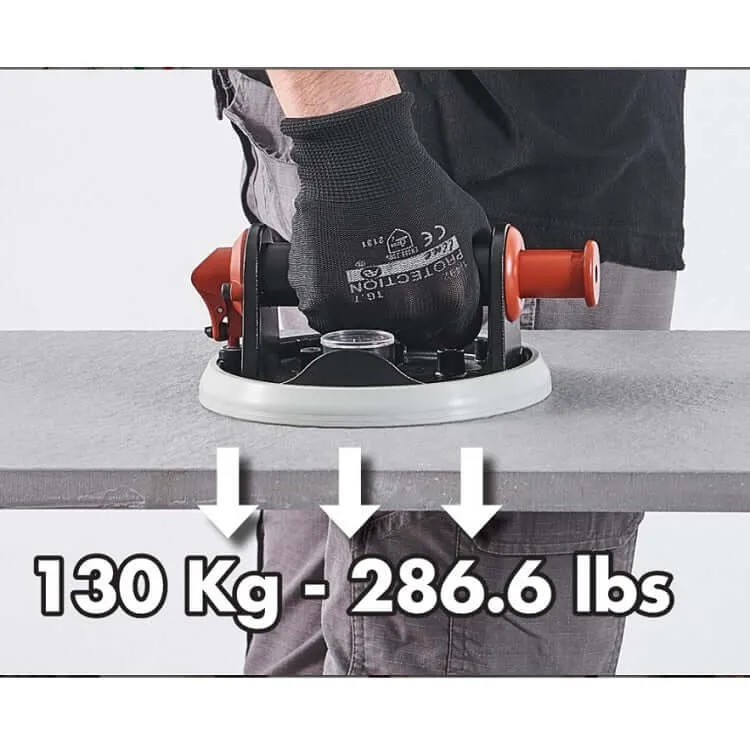

- Maximum load capacity: 286.6 lbs. (130 Kg)
- Safety factor 1.5.
- 6-7/8" (175 mm) diameter cup.
- Carry Case
